Reporting delays and day-of-week effects
Real surveillance data is rarely a clean count of infections on the day they occur. Cases are reported after a delay — an incubation period followed by a reporting lag — and the number reported depends on the day of the week. Tools for real-time estimation such as those of Abbott et al. [3] build these features into the observation model so that the latent infection signal is estimated free of reporting artefacts.
This tutorial keeps the renewal infection core of the previous example but replaces the simple observation model with a layered one: infections are convolved through two delay distributions and then modulated by a day-of-week reporting pattern. It also shows the latent process as an ARIMA-style differenced process broadcast to a weekly timescale, and assembles everything with IDProblem. The model follows the configuration of the EpiNow2 package [3] and is fit to daily confirmed COVID-19 cases from Italy's first wave in 2020.
The model
where
A weekly latent process
The latent process is an ARIMA(2,1,1): an AR/MA combination (arma) wrapped in a DiffLatentModel to difference it once. Differencing makes the level a random walk rather than mean-reverting, which suits a reproduction number that can drift.
using ComposableTuringIDModels, Distributions, Random, Turing, Mooncake
using ADTypes: AutoMooncake
Random.seed!(20240601)
arma21 = arma(
init = [Normal(0, 0.2), Normal(0, 0.2)],
damp = [truncated(Normal(0.1, 0.2), 0, 1), truncated(Normal(0.1, 0.05), 0, 1)],
θ = [truncated(Normal(0.0, 0.2), -1, 1)],
ϵ_t = HierarchicalNormal(std = HalfNormal(0.1)))
arima211 = DiffLatentModel(; model = arma21, init = [Normal(0.3, 0.3)])broadcast_weekly makes the process piecewise-constant by week: a new value is drawn each week and held for seven days. This models
weekly_latent = broadcast_weekly(arima211)The infection process
As before, a Renewal process driven by a discretised generation interval. Here we use a rt slot.
renewal = Renewal(; generation_time = Gamma(1.4, 1 / 0.38),
rt = weekly_latent, initialisation = Normal(log(1.0), 1.0))A layered observation model
We start from the NegativeBinomialError link and build outward. ascertainment_dayofweek wraps it with a partially pooled day-of-week multiplier, so reporting can be systematically higher or lower on particular weekdays.
negbin = NegativeBinomialError(cluster_factor = HalfNormal(0.1))
dayofweek_negbin = ascertainment_dayofweek(
negbin; latent_model = HierarchicalNormal(std = HalfNormal(1.0)))LatentDelay convolves the expected observations with a delay distribution (discretised by double interval censoring). Two layers compose sequentially: a fixed incubation period from infection to symptom onset, then a reporting delay from onset to report whose parameters are inferred. The reporting delay is an UncertainDelay: its LogNormal log-scale mean and standard deviation carry priors, so the delay is rediscretised each draw and estimated jointly with the reproduction number rather than fixed from external data.
incubation = LogNormal(1.6, 0.42) # infection -> symptom onset (fixed)
reporting = UncertainDelay( # symptom onset -> report (inferred)
LogNormal, [Normal(0.58, 0.3), truncated(Normal(0.47, 0.2), 0, Inf)];
D = 8.0)
observation = LatentDelay(LatentDelay(dayofweek_negbin, incubation), reporting)That single observation object now carries, from the inside out: a negative binomial link, a day-of-week ascertainment modifier, a fixed incubation-delay convolution, and an inferred reporting-delay convolution — assembled entirely by composition. The reporting-delay parameters flow through the same priors seam as every other parameter, so inferring the delay needs no change to the rest of the model.
The data
We fit the model to the daily confirmed COVID-19 cases from Italy's first wave (the example series shipped with the EpiNow2 package), stored with the docs.
using CSV, DataFrames
datapath = joinpath(pkgdir(ComposableTuringIDModels),
"docs", "src", "tutorials", "data", "italy_data.csv")
italy = CSV.read(datapath, DataFrame)
n = 42
y_obs = italy.confirm[1:n]
(n = n, total_cases = sum(y_obs), from = italy.date[1], to = italy.date[n])(n = 42, total_cases = 115239, from = Dates.Date("2020-02-22"), to = Dates.Date("2020-04-03"))Assemble and fit
IDProblem ties the latent, infection, and observation models to a time span. Its as_turing_model method takes data as a named tuple with a y_t field (passing missing values would instead simulate from the prior).
problem = IDProblem(
infection = renewal,
observation_model = observation,
tspan = (1, n))Fitting conditions on the observed reports, differentiating with the recommended Mooncake backend (see Automatic differentiation backend). We draw two chains in parallel with MCMCThreads(), which gives a cross-chain
posterior = as_turing_model(problem, (y_t = y_obs,))
chain = sample(
posterior, NUTS(0.95; adtype = AutoMooncake(; config = nothing)),
MCMCThreads(), 250, 2; progress = false)┌ Info: Found initial step size
└ ϵ = 0.003125
┌ Info: Found initial step size
└ ϵ = 0.003125sample returns a FlexiChains chain, which summarystats summarises directly — no conversion step. The day-of-week scale (DayofWeek.std), the negative-binomial overdispersion (cluster_factor) and the inferred reporting-delay parameters (delay.θ, the LogNormal log-mean and log-sd) appear alongside the latent-process parameters:
using MCMCChains
summarystats(chain)╭─FlexiSummary (9 statistics) ─────────────────────────────────────────────────╮
│ iter collapsed │
│ chain collapsed │
│ ↓ stat = [mean, std, mcse, ess_bulk, ess_tail, rhat, q5, q50, q95] │
│ │
│ Parameters (22) ── AbstractPPL.VarName │
│ Float64 latent_init[1], ar_init[1], ar_init[2], damp_AR[1], damp_AR[2], θ, │
│ std, ϵ_t[1], ϵ_t[2], ϵ_t[3], init_incidence, delay.θ[1], │
│ delay.θ[2], DayofWeek.std, DayofWeek.ϵ_t[1], DayofWeek.ϵ_t[2], │
│ DayofWeek.ϵ_t[3], DayofWeek.ϵ_t[4], DayofWeek.ϵ_t[5], │
│ DayofWeek.ϵ_t[6], DayofWeek.ϵ_t[7], cluster_factor │
│ │
│ Extras (14) │
│ Float64 n_steps, is_accept, acceptance_rate, log_density, │
│ hamiltonian_energy, hamiltonian_energy_error, │
│ max_hamiltonian_energy_error, tree_depth, numerical_error, │
│ step_size, nom_step_size, logprior, loglikelihood, logjoint │
│ │
│ Summary │
│ param mean std mcse ess_bulk ess_tail rhat … │
│ latent_init… 1.0149 0.1789 0.0177 102.4007 185.1553 1.0293 … │
│ ar_init[1] -0.0478 0.1701 0.0061 840.9304 292.9051 1.0016 … │
│ ar_init[2] -0.5211 0.1471 0.0143 106.1790 243.0068 1.0189 … │
│ damp_AR[1] 0.3474 0.1673 0.0209 66.0030 121.9997 1.0000 … │
│ damp_AR[2] 0.1187 0.0498 0.0050 102.7797 51.2459 0.9996 … │
│ θ 0.0091 0.2085 0.0105 387.0871 393.1397 1.0016 … │
│ std 0.1228 0.0691 0.0074 81.2603 112.2215 1.0014 … │
│ ϵ_t[1] -0.7044 0.8481 0.0876 97.6361 159.3205 0.9987 … │
│ ϵ_t[2] -0.6777 0.7519 0.0760 99.3796 143.2891 1.0026 … │
│ ϵ_t[3] 0.2624 0.9713 0.1140 72.6575 194.1712 1.0103 … │
│ init_incide… 3.2315 0.8107 0.0897 81.3604 138.2799 1.0332 … │
│ delay.θ[1] 0.4778 0.2699 0.0110 625.3088 243.8478 0.9993 … │
│ delay.θ[2] 0.3420 0.2502 0.1145 4.8497 20.8162 1.1691 … │
│ DayofWeek.s… 0.1181 0.0547 0.0048 128.2796 135.9651 1.0165 … │
│ DayofWeek.ϵ… -0.0420 0.6208 0.0654 89.2647 147.4202 0.9995 … │
│ DayofWeek.ϵ… 0.6939 0.6113 0.0534 132.0074 265.8945 1.0031 … │
│ DayofWeek.ϵ… 0.4928 0.5804 0.0524 122.2083 245.2598 1.0036 … │
│ DayofWeek.ϵ… 1.1117 0.6495 0.0555 137.3769 198.7015 0.9992 … │
│ DayofWeek.ϵ… -0.4076 0.6556 0.0632 108.7369 179.4825 1.0009 … │
│ DayofWeek.ϵ… -0.7413 0.6387 0.0610 110.7966 254.2802 0.9996 … │
│ DayofWeek.ϵ… -1.0649 0.6504 0.0642 108.7718 166.2512 1.0039 … │
│ cluster_fac… 0.1049 0.0196 0.0009 468.6484 400.7875 0.9986 … │
╰──────────────────────────────────────────────────────────────────────────────╯DayofWeek.std is the scale of the partially pooled weekday multipliers (its own block, namespaced because the ascertainment modifier introduces a named sub-process); cluster_factor is the negative-binomial overdispersion; delay.θ are the inferred reporting-delay parameters. The day-of-week effect, the reporting delay, and the weekly reproduction number were all estimated jointly — and any of them can be swapped, fixed, or removed by editing one line of the composition above.

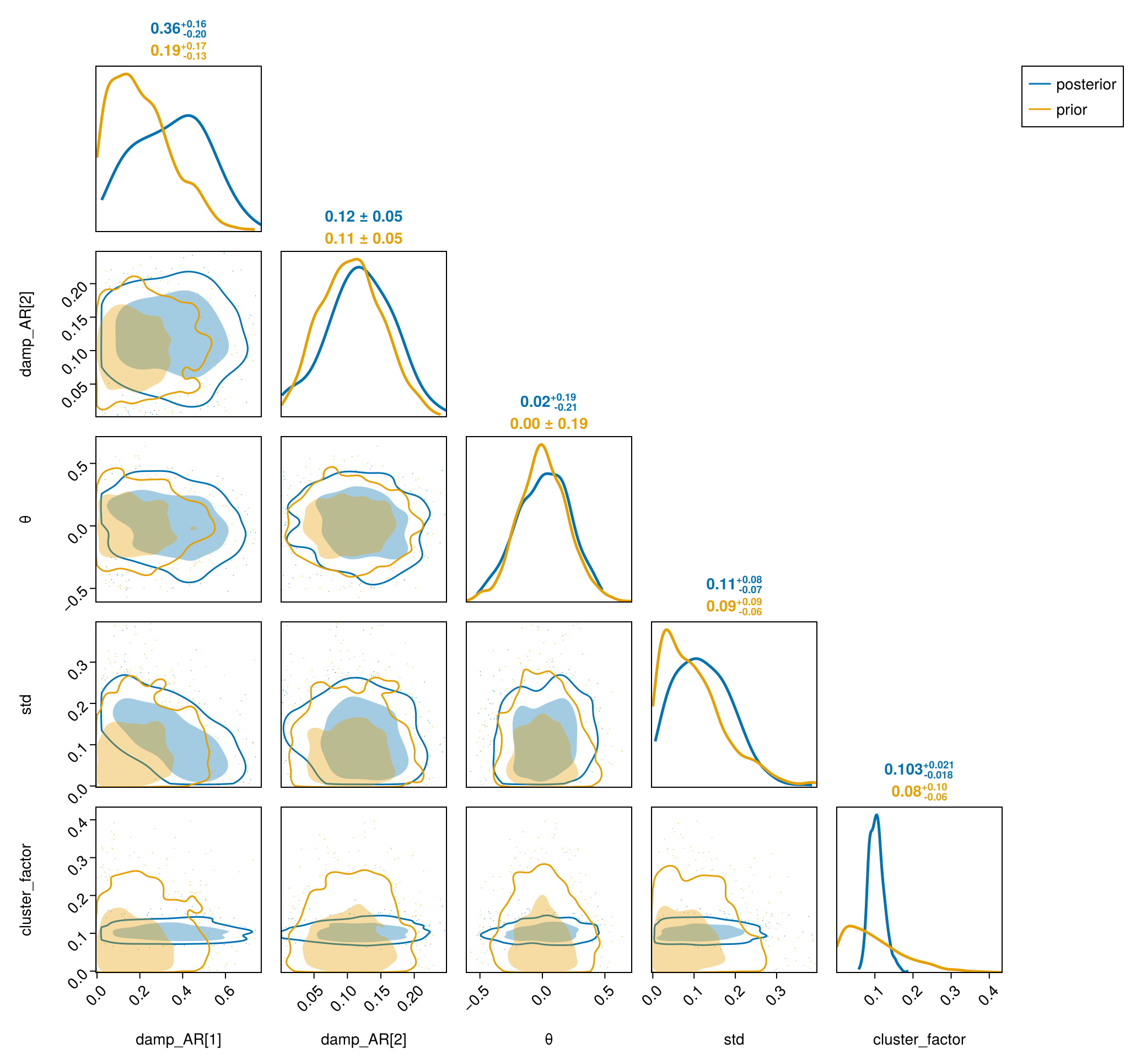

Prior versus posterior
Sampling the same model with Prior gives a prior draw over the same parameters. Overlaying it on the posterior with PairPlots.jl — the FlexiChains extension turns each chain, subset to a few keys, into a PairPlots.Series — shows which parameters the six weeks of Italian data moved.
using CairoMakie, PairPlots
prior_chain = sample(posterior, Prior(), 1000; progress = false)
pp_keys = [@varname(damp_AR), @varname(θ),
@varname(std), @varname(cluster_factor)]
pairplot(
PairPlots.Series(chain[pp_keys]; label = "posterior"),
PairPlots.Series(prior_chain[pp_keys]; label = "prior"))
The innovation scale std) and the negative-binomial overdispersion (cluster_factor) tighten under the data, while the autoregressive damping (damp_AR) and moving-average (θ) coefficients of the ARIMA process stay close to their weakly informative priors.

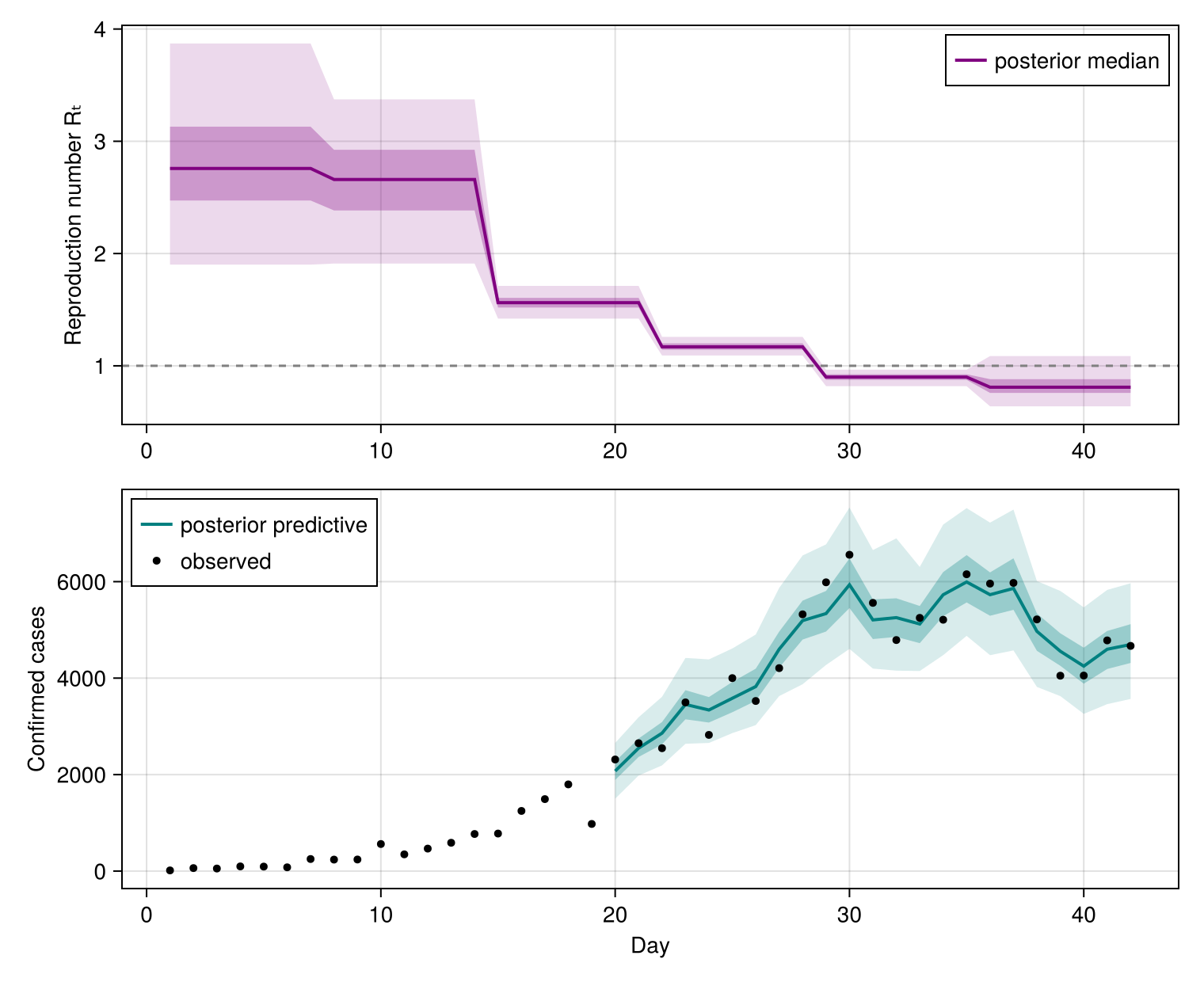

Posterior trajectories
generated_observables; the reports predict on the model with the observations set to missing. Two small helpers reduce the per-draw trajectories to credible bands.
gens = vec(generated_observables(posterior, (y_t = y_obs,), chain).generated)
Rt = credible_bands(reduce(hcat, (exp.(g.Z_t) for g in gens)))
pred = predict(as_turing_model(problem, (y_t = fill(missing, n),)), chain)
yt = predictive_bands(pred, n)
fig = Figure(; size = (760, 620))
ax1 = Axis(fig[1, 1]; ylabel = "Reproduction number Rₜ")
ci_ribbon!(ax1, 1:size(Rt, 1), Rt; color = :purple, label = "posterior median")
hlines!(ax1, [1.0]; color = :grey, linestyle = :dash)
axislegend(ax1; position = :rt)
ax2 = Axis(fig[2, 1]; xlabel = "Day", ylabel = "Confirmed cases")
ci_ribbon!(ax2, 1:size(yt, 1), yt; color = :teal,
label = "posterior predictive")
scatter!(ax2, 1:n, y_obs; color = :black, markersize = 7, label = "observed")
axislegend(ax2; position = :lt)
fig
The weekly
A time-varying reporting pattern
The day-of-week multiplier above is static: one weekly profile held fixed across the series. Reporting behaviour can itself drift — testing capacity changes, weekend effects strengthen or weaken — and the same composition expresses that. Because the ascertainment modifier takes any latent model, replacing the pooled HierarchicalNormal weekday effect with a BroadcastLatentModel over a process that evolves week to week turns the fixed profile into a time-varying one, at the cost of more latent parameters. The structural change is again local to the observation model; the infection and latent
The reporting delay can drift in the same way, through the same seam. An UncertainDelay parameter is a prior slot like any other, so replacing its constant log-mean prior with a process — a RandomWalk — makes the delay distribution itself time-varying: it is rediscretised at each time point and applied with a per-time convolution, while the log-scale spread keeps a constant prior.
drifting = UncertainDelay(
LogNormal, [RandomWalk(), truncated(Normal(0.47, 0.2), 0, Inf)]; D = 8.0)
tv_observation = LatentDelay(
LatentDelay(dayofweek_negbin, incubation), drifting)Nothing else changes: the infection process, the
References
- S. Abbott, J. Hellewell, R. N. Thompson, K. Sherratt, H. P. Gibbs, N. I. Bosse, J. D. Munday, S. Meakin, E. L. Doughty, J. Y. Chun and others. Estimating the time-varying reproduction number of SARS-CoV-2 using national and subnational case counts. Wellcome Open Research 5, 112 (2020).
